Item # 25 SMA-50-3-15 / 111 NH, Straight Panel Cable Plugs (female)


    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites


SMA series straight panel cable plugs.





Specifications

Cable dielectic dia. (inches)

.066/.117

Impedence (ohms)

50

Frequency range (GHz)

DC - 18

RF-Leakage (dB)

>100

Dielectic withstanding voltage (V rms)

1000/1500

Corona extinction voltage (V rms)

<335/<500

Working voltage @ 70,000 ft. (V rms)/RF Withstanding voltage @ 5 MHz (V rms)

250/375

Contact resistance centre contact (ohms)

<85/<125

Contact resistance outer contact (ohms)

<3

Connector series

<2.5

Contact captivation (lbs)

SMA

Temperature range (degrees F)

-85 to 329

Body material

Beryllium copper, hardened

Pin contact material

Beryllium copper, hardened

Socket contact material

Beryllium copper, hardened

Crimp ferrule material

copper, brass

Insulator material

PTFE or PFA

Cable Group

Y5, Y12

Packaging

bulk 100 pcs.

Plating Body

gold

Cable Type

semi-rigid

Connection

female

Configuration

straight panel

Mounting hole

ML 19


 MORE IMAGES

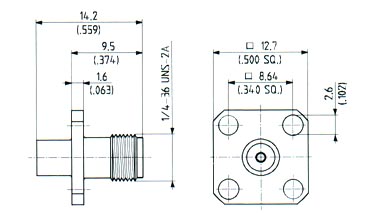

·  Interface Dimensions

·  VSWR

·  Dimensions
